Little Wonder Monster Self-Contained TruckLoaders

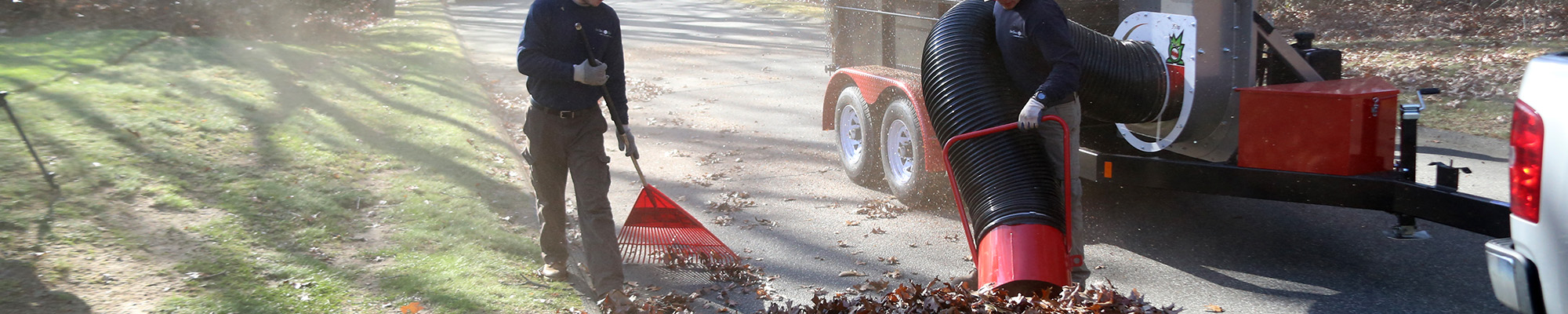

Little Wonder Monster Self-Contained Truckoaders are an all-in-one hitch-and-go leaf collection and dump system that includes a debris loader, large capacity dump container and trailer. It’s an entire towable leaf collection and dump system you tow with your work truck. Only Little Wonder offers a full line of large capacity self-contained truck loaders. And, with our industry leading 15:1 leaf reduction ratio, you’ll clear more leaves in a single offload than with any other truck loader.
- Serrated impeller
- 4-blade steel
- up to 15 to 1 reduction ratio; best in industry
- fit more debris in the truck – less offloads
- Square stack
- Forces airflow to the corners to keep debris moving; reducing clumping and clogs
- Less downtime due to clogging
- Stack gaskets seal in airflow and lock in debris moisture for a clean machine

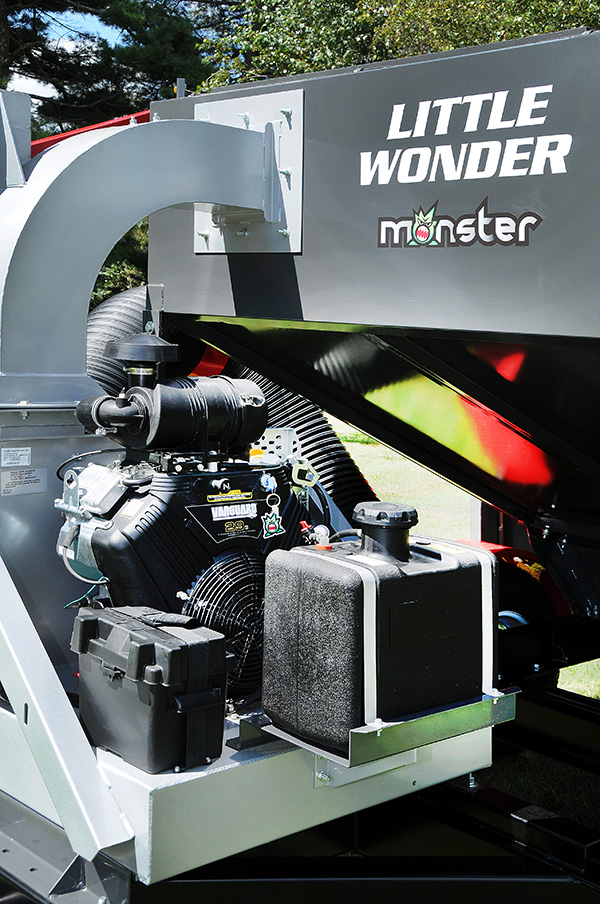

- Power and fuel
- Little Wonder self-contained units are available in 33HP, 40HP, and 49HP
- Gas and diesel units are available
5 YD Self-Contained TruckLoader
Little Wonder monster 5 Yard Self Contained Specifications
| Model No. | 83365-04-01 |
|---|---|
| Engine | B&S Vanguard |
| Engine Power | 33HP |
| Fuel Capacity, gal (l) / Fuel Type | 6 (22.7) / Gasoline |
| Emissions Compliance | EVAP/49-state |
| Hitch Class Requirements (min) | Class III |
| Hitch Type | Ball Coupler |
| Starter | Electric |
| Impeller Mount / Drive | Taper Lock Hub / Direct |
| Impeller Diameter, in (cm) / Type | 19.75 (50.2) / Serrated |
| Impeller Blades / # Cutting Points | 4 / 48 |
| Impeller Material / Thickness, in (mm) | Steel / 3/8 (9.5) |
| Air Flow (CFM) | 4,712 |
| Housing Liners, in (mm) | 1/4 (6.4) Steel |

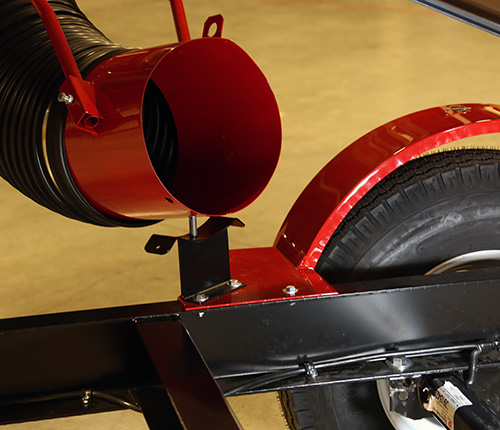

| Intake Hose Diameter, in (cm) x Length, ft (m) | 12 (30.5) x 10 (3) |
| Discharge Hose Diameter, in (cm) x Length, ft (m) | 8 (20.3) x 5 (1.5) |
| Axle Rating, lbs (kg) | 3,500 (1,588) |
| Suspension | Torflex |
| Tire/Wheel | 700-15LT |

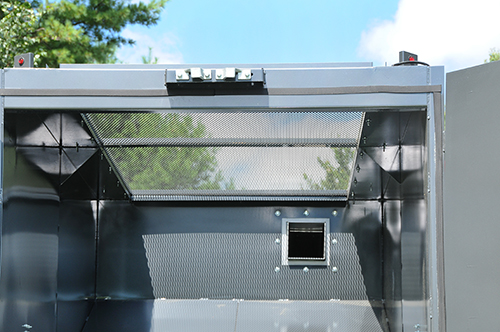

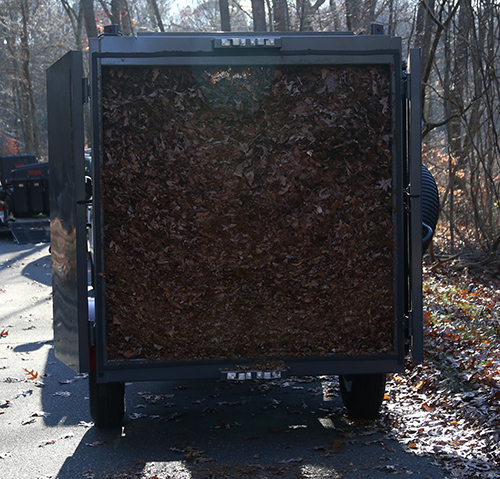

| Container Type | 5-Yard Gravity Dump Trailer |
| Container Dimensions L x W x H, ft (m) | 8 x 5 x 6 (2.4 x 1.5 x 1.8) |
| Container Dump Angle / Type | 65° / Fixed |
| Container Doors | Double barn doors (rear) w/sidewall door latches |
| Container Hydraulics | N / A |
| Assembled Dimensions L x W x H, in (cm) | 172 x 72 x 88 (437 x 183 x 224) |
| Dry Weight, lbs (kg) | 2,210 (1,002) |
| Gross Vehicle Weight Rating, lbs (kg) | 3,500 (1,588) |
| Commercial Warranty** | 2 Years |
10 YD Self-Contained TruckLoader
Little Wonder Monster 10 Yard Self Contained Specifications
| Model No. | 84060-04-01 | 84960-06-01 |
|---|---|---|
| Engine | B&S Vanguard | Kohler Diesel KDI |
| Engine Power | 40HP | 49HP |
| Fuel Capacity, gal (l) / Fuel Type | 7 (26.5) / Gasoline | 22 (83.3) / Diesel |
| Emissions Compliance | EVAP/49-state | Final Tier 4 (FT4) |
| Hitch Class Requirements (min) | Class III | Class III |
| Hitch Type | Ball Coupler | Ball Coupler |
| Starter | Electric | Electric |
| Impeller Mount / Drive | Taper Lock Hub / Belt | Taper Lock Hub / PTO clutch |
| Impeller Diameter, in (cm) / Type | 25 (63.5) / Serrated | 25 (63.5) / Serrated |
| Impeller Blades / # Cutting Points | 4 / 48 | 4 / 48 |
| Impeller Material / Thickness, in (mm) | Steel / 1/2 (12.7) | Steel / 1/2 (12.7) |
| Air Flow (CFM) | 6,951 | 7,600 |
| Housing Liners, in (mm) | 1/4 (6.4) Steel | 1/4 (6.4) Steel |

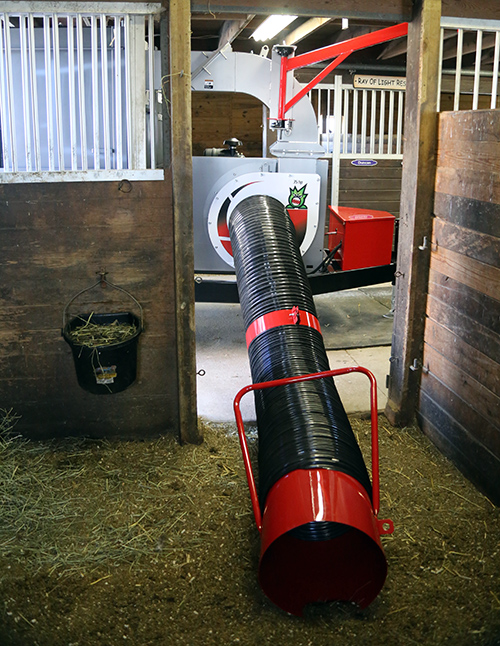

| Intake Hose Diameter, in (cm) x Length, ft (m) | 16 (40.6) x 10 (3) | 16 (40.6) x 10 (3) |
| Discharge Hose Diameter, in (cm) x Length, ft (m) | 12 (30.5) x 6 (1.8) | 12 (30.5) x 6 (1.8) |
| Axle Rating, lbs (kg) | Dual 6,000 (2,722) | Dual 6,000 (2,722) |
| Suspension | Leaf springs | Leaf springs |
| Tire/Wheel | 700-15LT | 700-15LT |

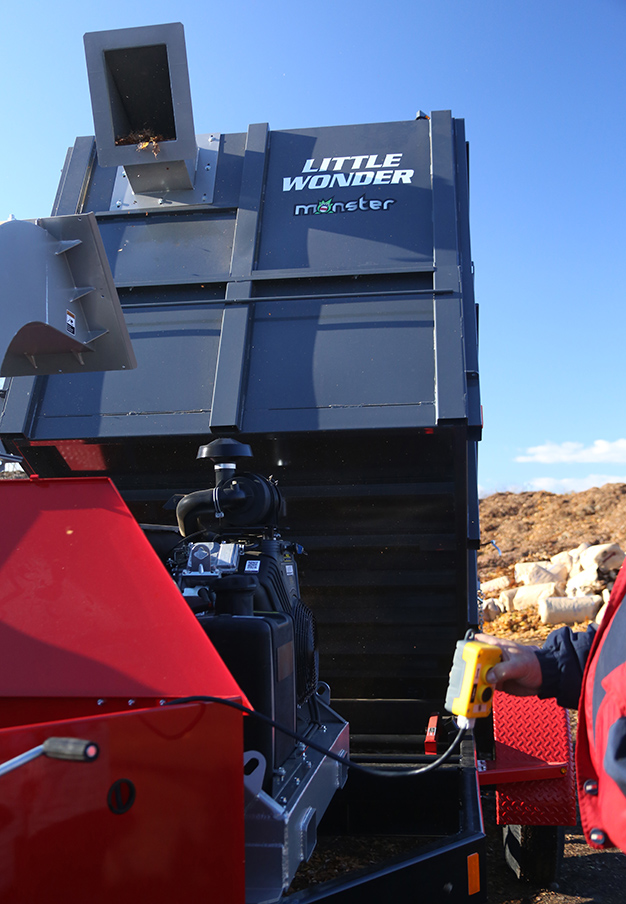

| Container Type | 10-Yard Hydraulic Dump Trailer | 10-Yard Hydraulic Dump Trailer |
| Container Dimensions L x W x H, ft (m) | Full dump box 9 x 6 x 5.5 (2.7 x 1.8 x 1.7) Half dump box 9 x 6 x 2 (2.7 x 1.8 x 0.6) | Full dump box 9 x 6 x 5.5 (2.7 x 1.8 x 1.7) Half dump box 9 x 6 x 2 (2.7 x 1.8 x 0.6) |

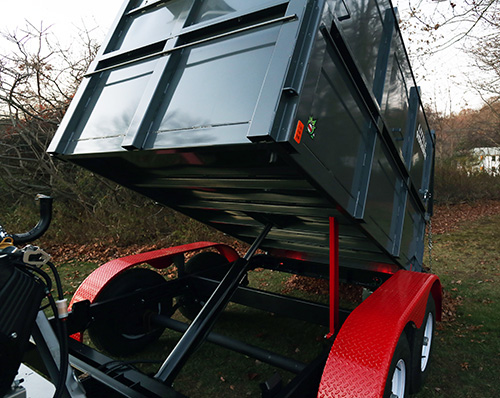

| Container Dump Angle / Type | 50° / Hydraulic lift | 50° / Hydraulic lift |
| Container Doors | Two-way lower tailgate. Top hinged upper tailgate | Two-way lower tailgate. Top hinged upper tailgate |

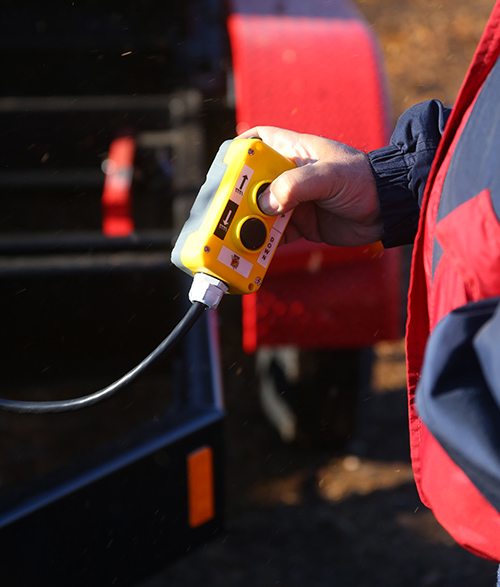

| Container Hydraulics | 12-volt two-way hydraulic pump w/push button controls | 12-volt two-way hydraulic pump w/push button controls |
| Assembled Dimensions L x W x H, in (cm) | 233 x 90 x 87 (592 x 229 x 221) | 233 x 90 x 87 (592 x 229 x 221) |
| Dry Weight, lbs (kg) | 5,400 (2,449) | 6,115 (2,774)* |
| Gross Vehicle Weight Rating, lbs (kg) | 12,000 (5,443) | 12,000 (5,443) |
| Commercial Warranty** | 2 Years | 2 Years |
