Little Wonder AgVac
Mucking Stables and Pens Made Faster and Efficient
- A faster way to muck out stalls and livestock pens!
- The Little Wonder agricultural vacuums waste into a self-contained debris loader.
- Compact size is designed for mucking barns, coops, and pens in aisles as narrow as 6 feet.
- Dual-hose manifold lets two stable hands work simultaneously.
- Fixed dump bed angle lets gravity help offload waste and bedding into the manure pile or dumpsite.
- Monstrous power makes cleaning equine and livestock barns and stalls easier.

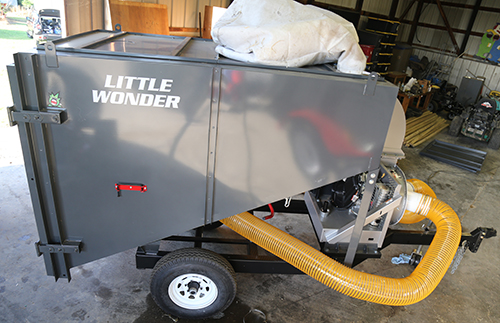

AgVac 5S Agricultural Vacuum Features
- 14” housing manifold accommodates dual hoses and increased productivity, clearing more waste in less time
- Dual 15’ hoses feature anti-friction, anti-clog smooth-bore interiors, for uninterrupted work
- 5-yard capacity

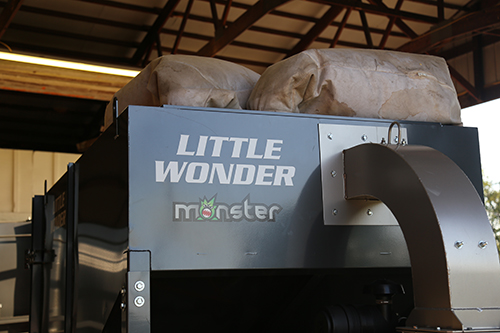

- Top-vented with felt bags for increased filtration
- Square stack for superior airflow; virtually eliminates clogging that round stacks allow
- 65° Fixed dump bed angle allows gravity to help offload materials

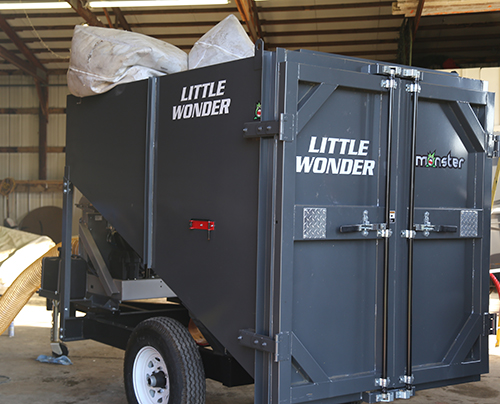

- Barn-style double rear doors with sidewall door latches secure doors when open for offloading
Little Wonder AgVac specifications
| Model No. | 82965-04AVS |
|---|---|
| Engine | Briggs & Stratton Vanguard |
| Engine Power | 29HP |
| Fuel Capacity, gal (l) / Fuel Type | 6 (22.7) / Gasoline |
| Emissions Compliance | EVAP/49-state |

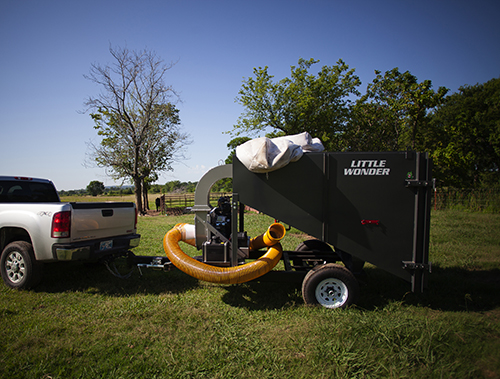

| Hitch Class Requirements (min) | Class III |
| Hitch Type, in (cm) | Ball Coupler |
| Starter | Electric |
| Impeller Mount / Drive | Taper Lock Hub / Direct |
| Impeller Diameter, in (cm) / Type | 19.75 (50.2) / Straight |
| Impeller Blades, in (cm) | 6 (15.2) |
| Housing Liners, in (mm) | 1/4 (6.4) Steel |
| Housing Manifold, in (cm) | 14 (35.6) |
| Dual Intake Hose Diameter, in (cm) x Length, ft (m) | 8 (20.3) x 15 (4.6) |
| Tire/Wheel | ST225/75 |
| Filter Bags | 2 |
| Container Type | 5-Yard Gravity Dump Trailer |
| Container Dimensions L x W x H, ft (m) | 8 x 5 x 6 (2.4 x 1.5 x 1.8) |
| Container Dump Angle / Type | 65° / Fixed |
| Container Doors | Double barn doors (rear) with sidewall door latches |
| Assembled Dimensions L x W x H, in (cm) | 173 x 67 x 88 (440 x 170 x 224) |
| Dry Weight, lbs (kg) | 2,210 (1,002) |
| Certified for On-Road Use | No |
